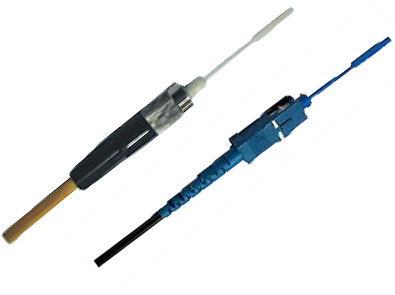

Hot Melt Fast Connector

Applications:

  • Optical fiber plug-and socket panel
  • Optical fiber distributing frame
  • Fiber network maintenance and emergency repair
  • Desktop connections of LAN
  • The terminal in joint of FTTH optical network



Features:

  • Do not need epoxy glue for field installation
  • No need to grind
  • No need to prepare the fixed length of pigtail or optical jump line
  • Do not need Fiber-melting, which is used for protecting the heat shrinkage
  • Achieve high return loss, low insertion loss optical performance
  • Change the mechanism aligning structure of fast connector
  • High-accuracy welding, ensure quality optical performance



Performance Index

Suitable Fiber Covered Optical Cable 3.0, 2.0, 0.9
Fiber Diameter 125μm
Tight Pack Diameter 250μm
Fiber Type Single mode or multimode
Installation Time less then 60S
Insertion Loss ≤0.20dB
Return Loss ≥50dB
Tight Pack Clamping Force ≥50N
Fiber Clamping Force ≥50N
Temperature -40°C~80°C
Opereation Life 80 years
