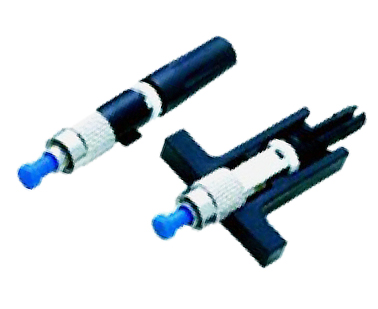

Preset Connection Jump Line

Applications:

  • Optical fiber plug-and socket panel
  • Optical fiber distributing frame
  • Fiber network maintenance and emergency repair
  • Desktop connections of LAN
  • The terminal in joint of FTTH optical network



Features:

  • Do not need welding and welding machine
  • No special tools
  • Easy to install and do not need special training
  • Fast, only take one minute to install
  • Do not need power source or lighting
  • No consumables, convenient to carry
  • Widely used in pipe, corner, patio and other narrow space
  • No additional loss, low insertion loss
  • Allow any length of the fiber, greatly reducing the waste of optical cable



Performance Index

Series

SC/FC/LC/ST

SC/FC/LC/ST

SC/FC/LC/ST

SC/FC/LC/ST

Applicable Optical Cable Covered optical cable Φ3.0 (or Φ2.0) Lossely shielded optical cable Φ0.9 Loosely shielded optical cable Φ0.25 Bare fiber
Fiber Diameter 125μm 125μm 125μm 125μm
Tight Packet Layer Diameter 250μm 250μm 250μm 250μm
Optical Fiber Mode Single mode or Multimode Single mode or Multimode Single mode or Multimode Single mode or Multimode
Installation Time Less then 60S Less then 60S Less then 60S Less then 60S
Insertion Loss ≤0.3dB (1310nm or 1550nm) ≤0.3dB (1310nm or 1550nm) ≤0.3dB (1310nm or 1550nm) ≤0.3dB (1310nm or 1550nm)
Return Loss ≥50dB ≥50dB ≥50dB ≥50dB
Tight Pack Clamping Force ≥5N ≥5N ≥5N ≥5N
Cable Clamping Force ≥20N ≥20N / /
Using Temperature -40°C~+80°C -40°C~+80°C -40°C~+80°C -40°C~+80°C
Reusability Can be reused if the optical cable has not been pressed Can be reused if the optical cable has not been pressed Reusable Reusable
Repeat usage Times ≥5 times ≥5 times ≥5 times ≥5 times
Normal Life 30 years 30 years 30 years 30 years
