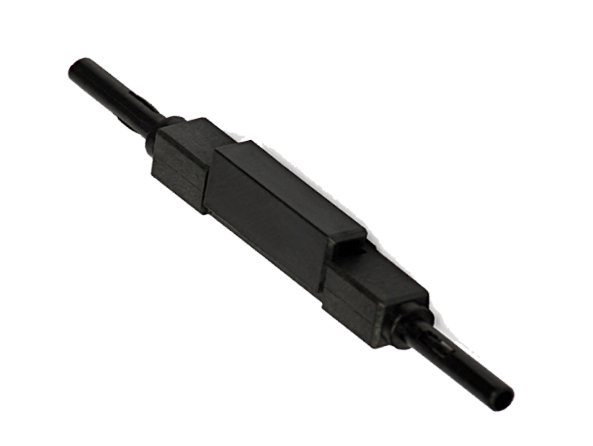

Fiber Optic Mechanical Splice

Applications:

  • Suitable for connection with single-mode 2.0/3.0 fiber optic cable.
  • FTTH Fiber to the home project
  • Optical communication system
  • LAN
  • Fiber optic cable repair



Features:

  • Easily and rapidly operate with firm and reliable performance
  • High reliability and low cost
  • Can insert many times
  • Good thermal stability
  • Can be used for a long time
  • Good tensile strength
  • Low loss



Performance Index

Technical Parameters

Insert Loss  ≤0.2dB
Return Loss  ≥50dB
Repeat Use Times 20 times
Installation Time 20 seconds
Tensile Test ≥7kg

Enviormental Parameters

 Temperature Cycling Test Insert Loss Change  <0.05dB@-40°C~+80°C
 Operating Ambient Temperature  -40°C~+80°C
 Vibration Test Value Change  ≤0.05dB
 Soak Test Value Change  ≤0.1dB
 Use Life  ≥35 years
