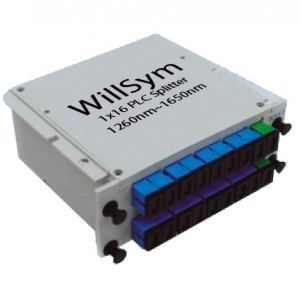

Insertion PLC Splitter

Applications:

  • Installed in outdoor cabinet and Floor Terminal Box
  • FTTH Fiber to the home
  • PON network
  • CATV
  • Fiber LAN



Features:

  • Low insertion loss
  • Spectral equally
  • Low polarization dependent loss
  • Small size
  • Applicable wavelength: 1260nm~1650nm
  • Conformity with Telcordia GR-1209-CORE and GR-1221-CORE standards and RoHS



Performance Index

1xN, 2xN PLC Parameters

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Insertion Loss Max(P/S) 4.1dB/4.4dB 7.4dB/7.7dB 10.5dB/11.0dB 13.8dB/14.2dB 17.1dB/17.5dB 20.5dB/21.0dB
Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Insertion Loss Max(P/S) 4.4dB/4.7dB 7.7dB/8.0dB 10.8dB/11.3dB 14.1dB/14.4dB 17.4dB/17.8dB 20.8dB/21.3dB
Insertion Uniformilty Max 0.5dB 0.8dB 0.8dB 1.0dB 1.5dB 2.0dB
Return Loss Min 55dB
Polarization Dependent Loss Max 0.3dB 0.5dB
Directivity Min 55dB
Dimension LxWxH 130x100x25 130x100x50 267x100x50 or 130x100x102 267x100x102 or 130x100x206
Working Temperature -40°C~+85°C
Working Wavelength 1260nm~1650nm
Length of fiber pigtail 0.5m
Type of fiber pigtail Φ0.9mm
Type of Connector FC/UPC, SC/UPC, LC/UPC, FC/APC, SC/APC, LC/APC or Customise
