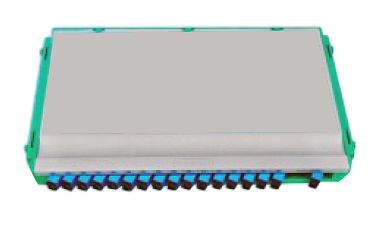

TRY PLC Splitter

Applications:

  • Installed in Cross-connection cabinet and ODF
  • FTTH Fiber to the home
  • PON network
  • CATV
  • Fiber LAN



Features:

  • Low insertion loss
  • Spectral equally
  • Low polarization dependent loss
  • Small size
  • Applicable wavelength: 1260nm~1650nm
  • Conformity with Telcordia GR-1209-CORE and GR-1221-CORE standards and RoHS



Performance Index

1xN, 2xN PLC Parameters
Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Insertion Loss Max(P/S) 4.1dB/4.4dB 7.4dB/7.7dB 10.5dB/11.0dB 13.8dB/14.2dB 17.1dB/17.5dB 20.5dB/21.0dB
Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Insertion Loss Max(P/S) 4.4dB/4.7dB 7.7dB/8.0dB 10.8dB/11.3dB 14.1dB/14.4dB 17.4dB/17.8dB 20.8dB/21.3dB
Insertion Uniformilty Max 0.5dB 0.8dB 0.8dB 1.0dB 1.5dB 2.0dB
Return Loss Min 55dB
Polarization Dependent Loss Max 0.3dB 0.5dB
Directivity Min 55dB
Dimension LxWxH 300x180x25 300x180x50 300x180x100
Working Temperature -40°C~+85°C
Working Wavelength 1260nm~1650nm
Length of fiber pigtail 0.5m or customise
Type of fiber pigtail Φ0.9mm/Φ0.2mm
Type of Connector FC/UPC, SC/UPC, LC/UPC, FC/APC, SC/APC, LC/APC or Customise
