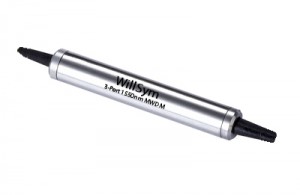

3 Port Single Mode 1310/1550nm MWDM

Applications:

  • System monitoring
  • WDM network
  • Transmitters and Fiber Lasers
  • Fiber optic amplifier
  • Fiber optic instruments

Features:

  • High broadband operating wavelength
  • Ultra flat wide pass band
  • Low insertion loss
  • High channel isolation
  • high stability and reliability



Performance Index

Parameter

MWDM-53/35

Channel Wavelength Range 1500nm~1600nm (or 1260nm~1360nm)
Reflect Channel Wavelength 1260nm~1360nm (or 1500nm~1600nm)
Insertion Loss Reflect Channel ≤0.5dB
Forward Channel ≤0.6dB
Insertion Loss Variation <0.3dB
Isolation Reflect Channel >15
Forward Channel >40
Insertion Loss Temperature Sensitivity <0.005dB/°C
Polarization Dependent Loss <0.1dB
Polarization Mode Dispersion <0.1ps
Directivity >50dB
Return Loss >50dB
Maximum Power Handling 500mW
Operating Temperature -20°C~+80°C
Storage Temperature -40°C~+85°C
Package Dimension (mm) Φ5.5xL34 (L38 for 900um loose tube)

*Note: Above specification are for device without connector
