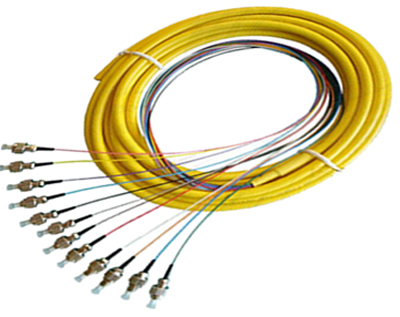

Bundle Fiber Optic patchcord, Pigtail

Applications:

  • Telecom Net
  • Test equipment
  • LAN
  • Fiber CATV



Features:

  • High return Loss
  • Low insertion loss
  • High reliability and stability
  • PC, UPC, APC three types
  • With FC, SC, ST, LC Connector
  • 4 core, 6 core, 8 core, 12 core Ribbon Fiber
  • Fiber length 0.5m or customise
  • Bundle fiber length 1m or customise



Performance Index

Insertion Loss Single Mode PC≤0.25dB, UPC≤0.20dB, APC≤0.30dB
Multi Mode PC≤0.25dB, UPC≤0.20dB, APC≤0.30dB
Return Loss PC≥45dB, UPC≥50dB, APC≥61dB
Repeatability (1000 times) ≤0.20dB
Temperature Range -40°C~+80°C
