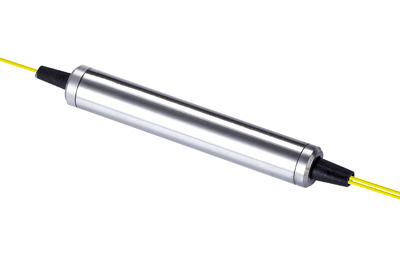

Tube CWDM

Applications:

  • CWDM system
  • LAN
  • Fiber CATV system
  • Telecom, communication, network system

Features:

  • Low insertion loss
  • High isolation
  • High stability and reliability
  • Broadband transmission



Performance Index

Parameters

Performance Index

Note

Operating wavelength 1260nm~1650nm
Channel Interval 20nm
Transmission Insertion Loss ≤0.5dB
Reflection Insertion Loss ≤0.4dB 23°C, the center wavelength
Projected End Isolation ≥30dB 23°C, the center wavelength
Reflection End Isolation ≥15dB
Directional ≥50dB
Return Loss ≥50dB
Polarization Dependent Loss ≤0.1dB
Bandpass Flatness ≤0.3dB
Maximum Power ≤300mW Center +/-6.5nm wavelength
