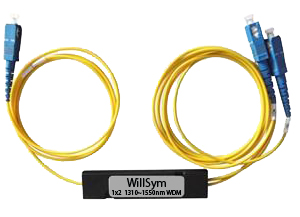

WDM

Applications:

  • Optical Fiber amplifier
  • Telecom system
  • CATV system



Features:

  • Low insertion loss
  • High isolation
  • Low polarization loss
  • Quality Comply with Telcordia GR-1221 and GR-1209



Performance Index

Parameters

Performance Index

Port Structure 1×2
Level P
Model A B
Biggest Insertion Loss 0.3dB 0.6dB
Isolation ≥16dB ≥30dB
Polarization Loss ≤0.1dB ≤0.1dB
Operating Wavelength 1310nm/1550nm ±15
Directional ≥55dB
Return Loss ≥55dB
Working Temperature -20°C~+70°C
Storage Temperature -40°C~+85°C
Optical Fiber Type Corning SMF-28e
Pigtail Length 1m or Customize
